BA 400
BA 400 Continuous motion cartoner

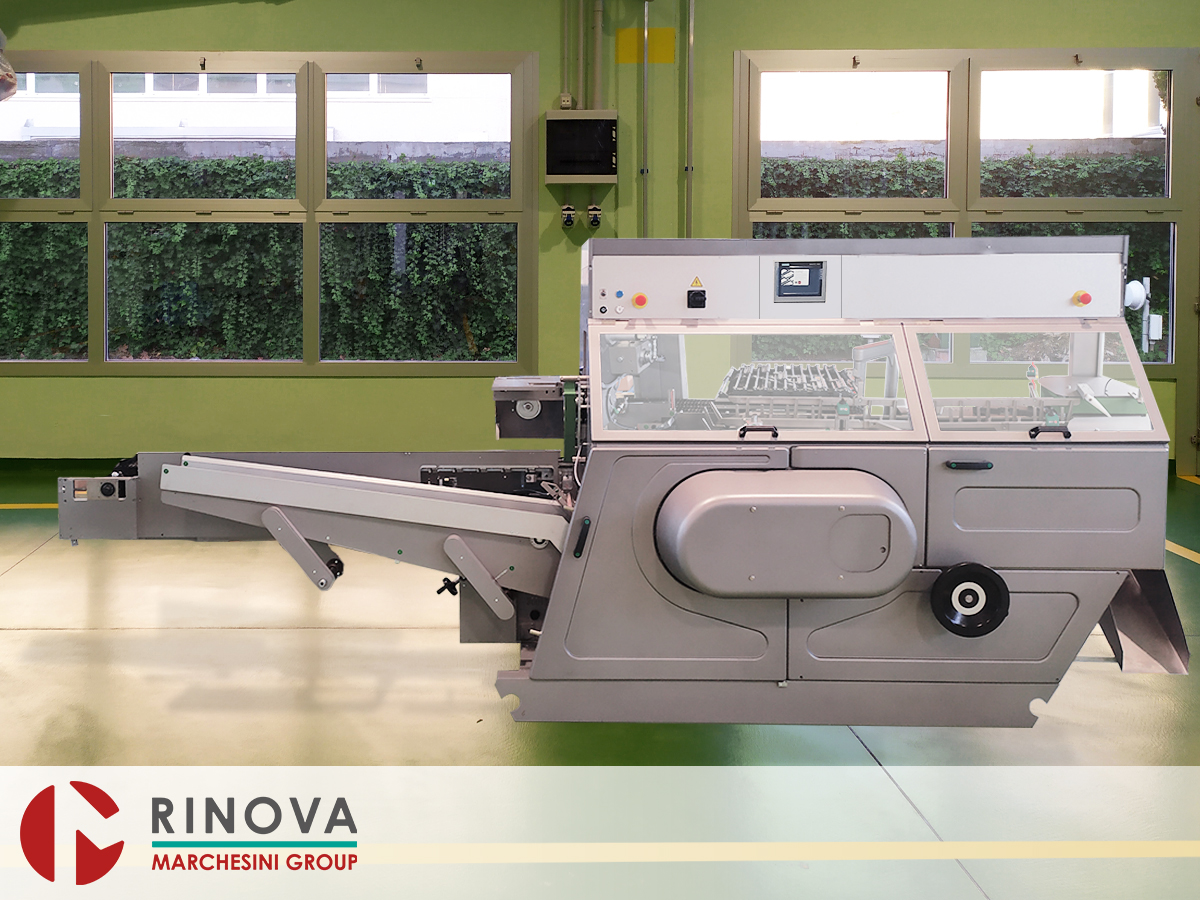

The Marchesini BA400 is a continuous motion horizontal cartoning machine. Cartoner suitable to pre-break and to open either reverse or straight tuck-in three flap cartons, insert product, which has been delivered to infeed, close cartons and discharge.
In the machine design, safety norms have been followed and the machine is delivered with the CE mark.
Main features

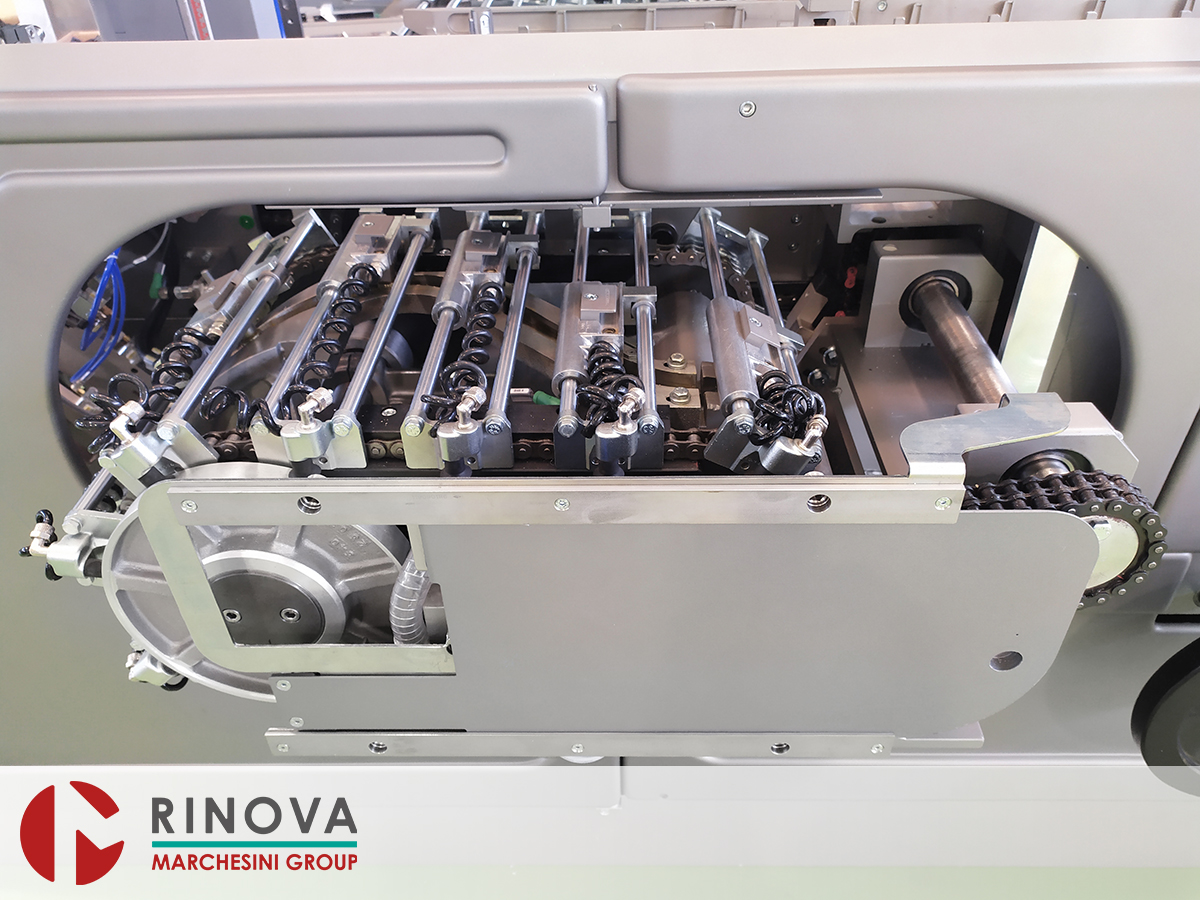

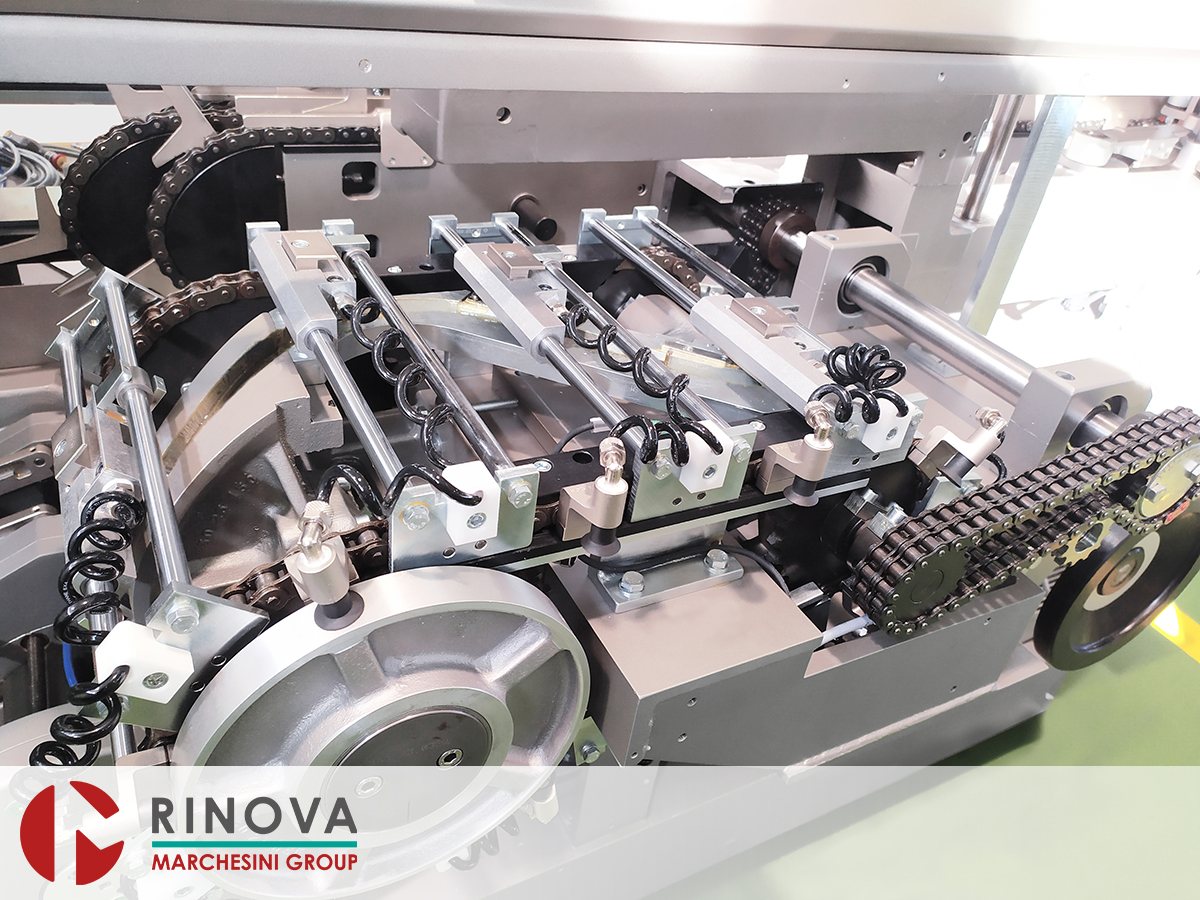

- Product insertion into the carton achieved with a set of pushers placed opposite the operator side;
- The cartoning section is composed of two enclosed drive units. One section is mounted fix and the other one adjustable and servo motor driven to suit the carton length (“h” dimension);
- Easy size adjustments;

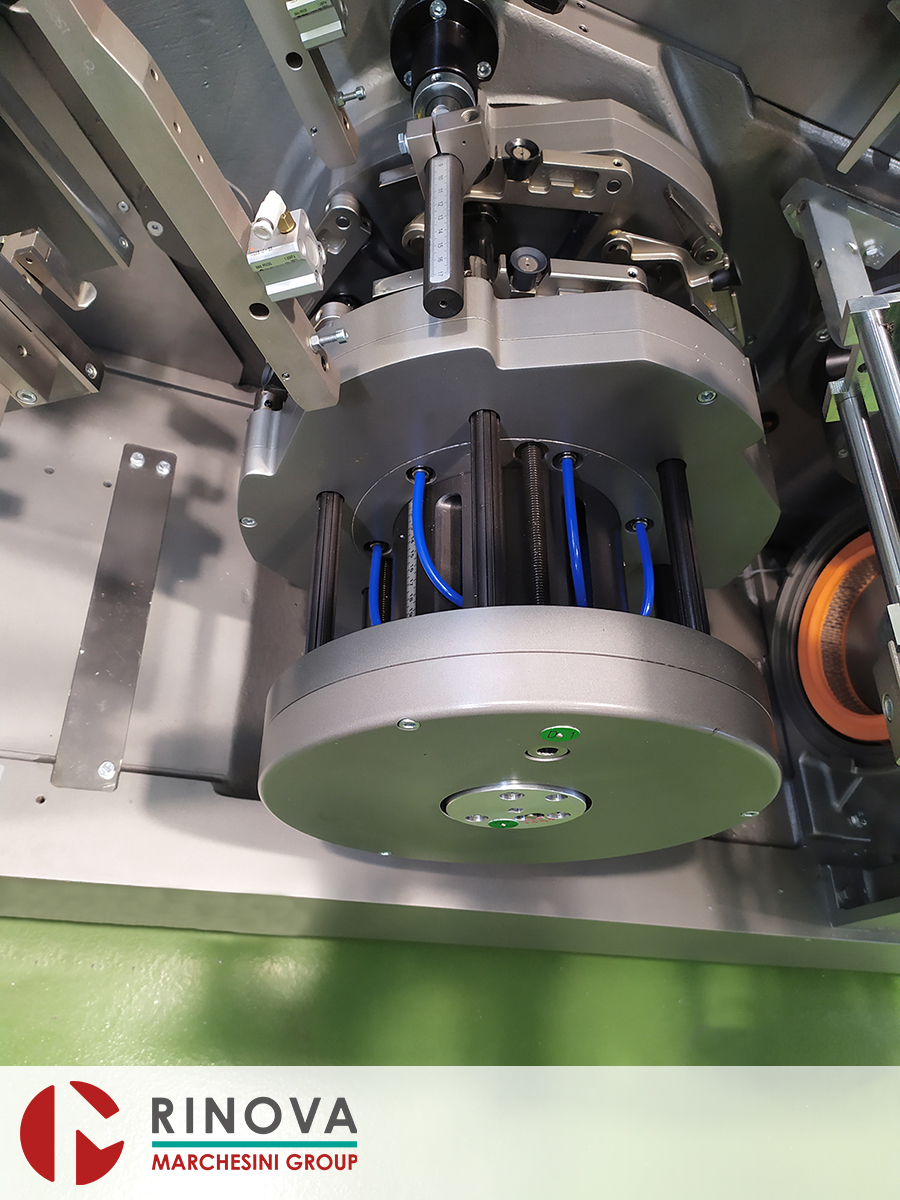

- Main servo motor. Vacuum pump for carton opening drum and transfer shafts;
- High capacity carton magazine;
- Venturi type pump for carton and leaflet aspiration;

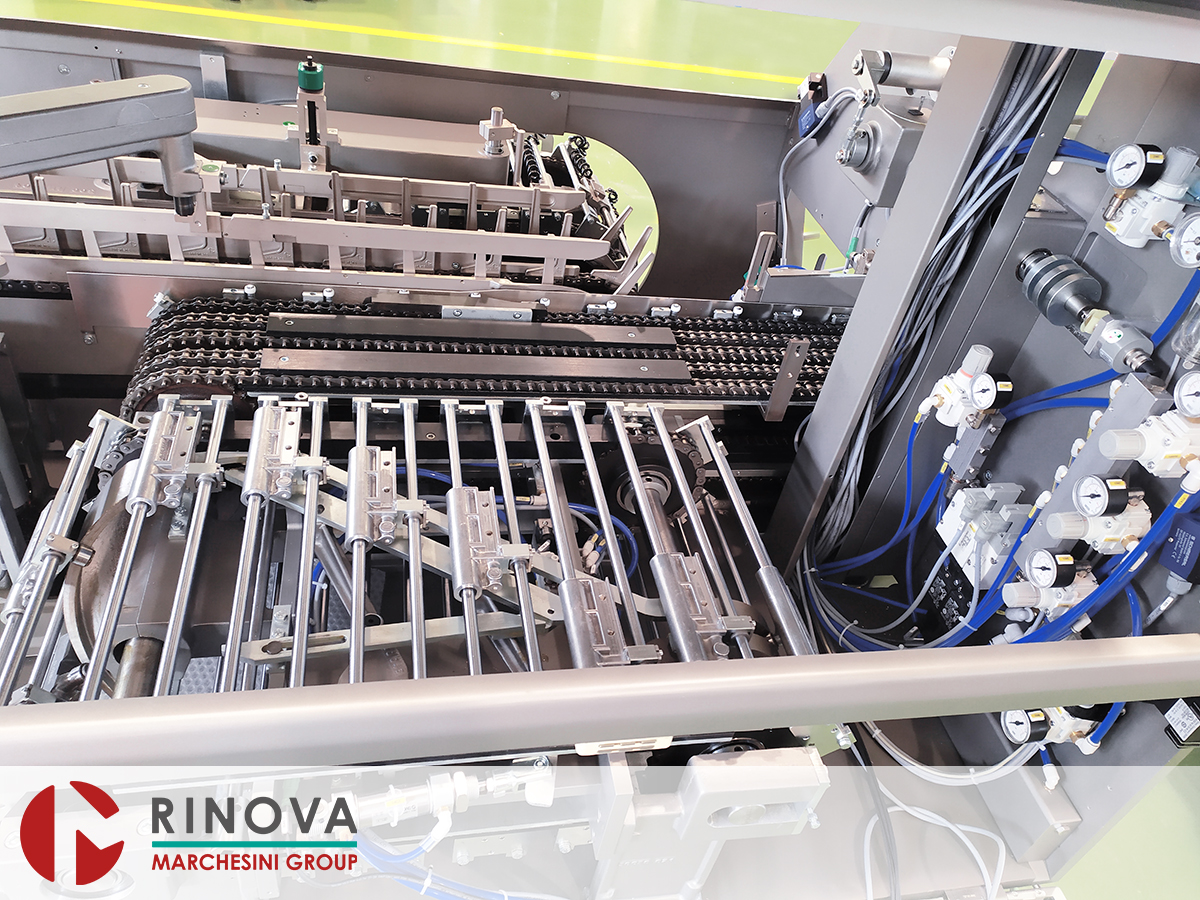

- Product transport chain with adjustable drawers in width;
- Underneath the pusher group is free of obstacles to allow for easy dropping of components;
- Quick and easy format change.
Technical data
Formats range (the data is for reference and is subject to possible variations during machine development)
- A: Min 25mm – Max 70, 95.25 mm pitch
- B: Min 15 mm – Max 70 mm
- H: Min 78 mm – Max 150 Standard version, with blade counter-thrusters
- The technical specifications herein are subject to change without notice and responsibility.
Maximum mechanical speed
- up to 350 cartons/min
- The production speed is always dependent on the possibility of feeding and characteristics of the product as well as on the configuration of the product, as well as on the accessories added to the standard machine
3 colours advisory lights
Tension
- 400V 50Hz
Pneumatic components
- SMC
Noise
- Not more than 80 dB(A)
Dimensions
- Length 3360 mm, Width 1580 mm, Height 1860 mm
Net weight
- 2000 Kg. approx
Technical documentation
- Original standard CE Instructions Manual (one hardcopy + one CD Rom) and CE Certificate are supplied with the machine
