MF 910

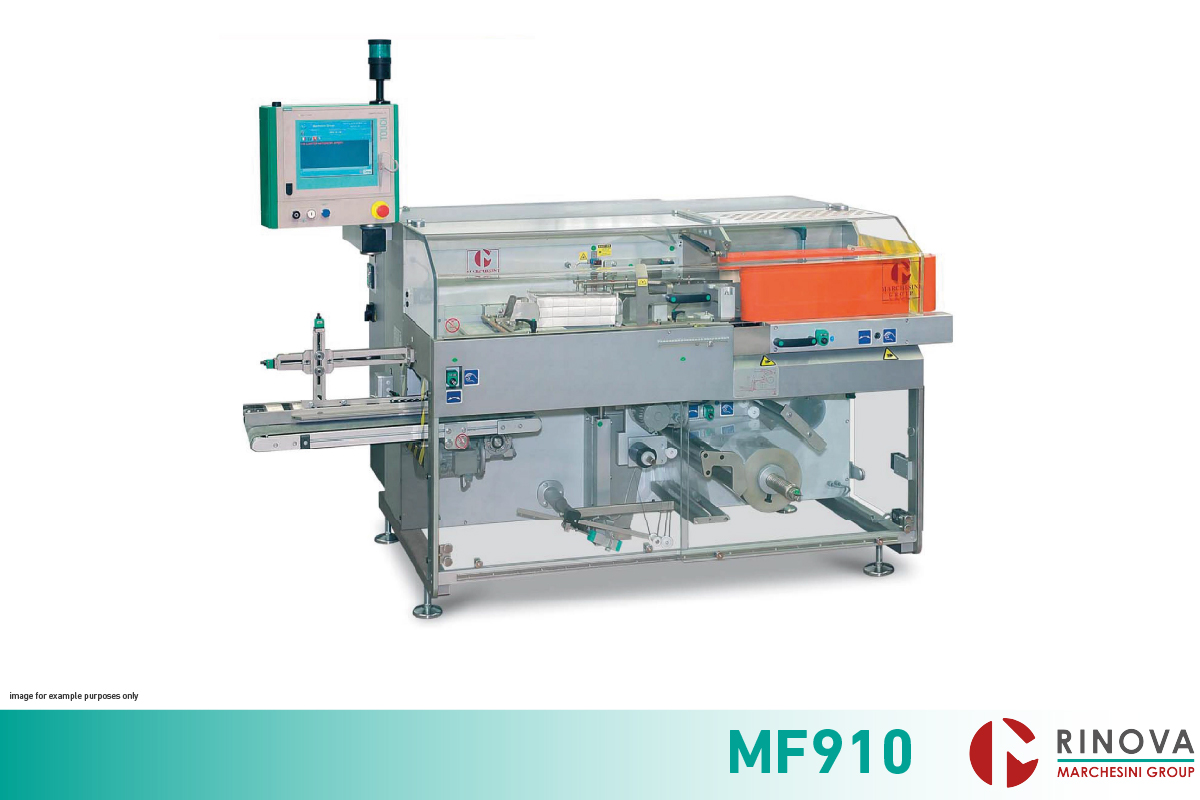

MF 910 Automatic wrapping machine
The Marchesini MF 910 is an automatic overwrapper suitable to collate boxes, cartons or other regular shaped single or bundled products and wrap in a six-sided complete wrap, lateral envelope folds. The machine utilizes heat sealable material like co extruded and/or coated Polypropylene.
Main Features
- This design reduces maintenance and lubrication of mechanical parts which are protected against dust and isolated from working area and product transport;
- Each movement is achieved by servo motor and PC controlled.
- Size adjustments through servomotors and digital indicators on all dimensions.
- Size management through PC input and executed automatically.
- Temperatures of sealers are set from the Operator Panel and dedicated to the size in use.
- Exchange of size parts with easy lock and a minimum use of tools;
- Infeed and discharge centerline opposite operator side. Flat product infeed belt;
- Infeed height from 590 to 715 +/- 40mm (23,228” – 28,149” +/- 1.5”);
- Single extractable reel holder (extractable – telescopic type) placed on operator side for easy replacement;
- Unwinding of wrapping material from the roll placed in-line in reference to the product flow direction;
- Product discharge system: product pushes product, at a height of 890 +/- 40 mm (35” +/- 1.5”) and sealing with lateral belts.
Technical data
Product infeed height
- 590-715 mm +/- 40
Bundle outfeed height
- 890 mm +/- 40
Reel core diameter
- 75 mm
Installed power (basic machine)
- 15 Kw
Approx net weight
- 1.250 kg
Compressed air consumption (basic machine)
- 4,5 Nl/1’ 6 bar
