RL-450
RL-450 Labeller

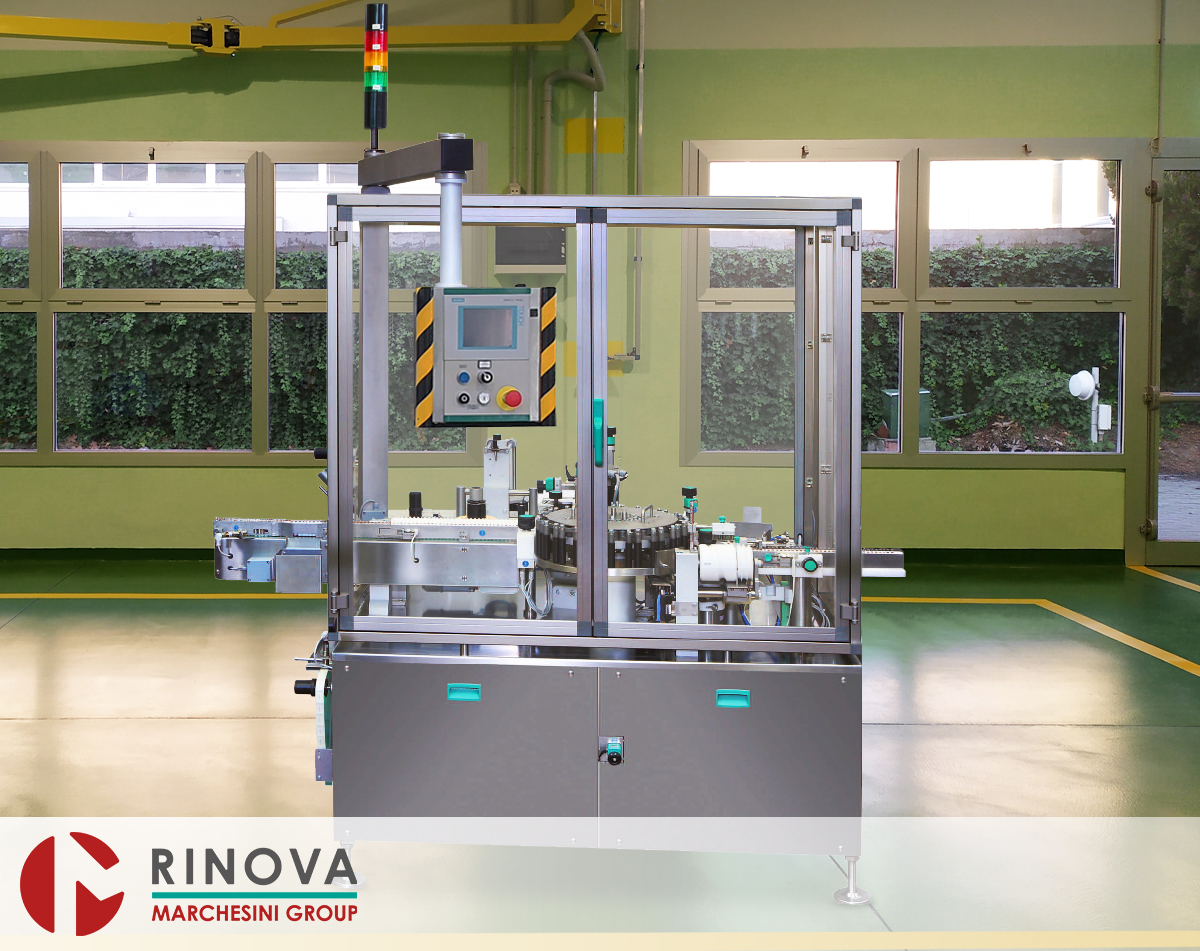

The Marchesini Neri RL-450 is an automatic labeller, suitable to apply labels at high production speed on vials, ampoules, cartridges and cylindric containers. Unit operating in line with other machines or as a free-standing unit from tray to tray.
Main Features
- Design, manufacturing and ergonomics, in accordance with GMP norms.
- AISI 304 stainless steel supporting frame and panelling.
- Scroll feeding system, spacing and distributing ampoules or vials, in step on the main transport carousel.
- Container transport roller carousel with adjustable pitch, designed to handle a wide range of sizes.
- Speed adjustment from operator panel.
- One (1) label dispenser.
- Self-learning system of the labels to be handled.
- Provision to store several sizes of labels, with label size recall from keypad (no need to adjust the position of photocells or sensors).
- Stepping feeding of labels, allowing empty spaces on reel.
- Horizontal and vertical adjustment of the labels position by means of hand wheel control complete with digital settings.
- Micrometric adjustment of the overprint position on the labels.
- Label smoothing system with a “mousse” rubber belt.
- Automatic reel unwinding unit.
- Backing paper rewinding unit with mechanical clutch.
- Dispensed label counter visible on display.
- Products extraction system from the main transport carousel, by means of an extraction drum with rubber suction cups.
- Scroll for the products transfer from the extraction drum to the machine outfeed.
- Wrong product rejection system positioned in the transfer screw.
- Collation of products on tray.
- Size changeover with no need of specific tools.
- CE marking.
Safeties and Controls
- Safety guards in anodized aluminium frame and methacrylate panels.
- Emergency circuits and protections with safety level “PLd Cat.3”.
- Missing label control on reel.
- End of reel control with machine stop.
- Control for backing paper rewinding unit maximum load, with machine stop.
- Minimum load control at the infeed with machine stop and automatic restart.
- Compressed air control pressure-switch with machine stop at low-level detection.
Included
- One (1) ampoules or vials size consisting of: feeding scroll, intermediate guides and discharge screw.
Technical data
Mechanical speed
- 450 pcs/minute
Product sizes
- Diameter from 8 mm to 32 mm (from 0.31” to 1.26”)
- Height from 40 mm to 130 mm (from 1.57” to 5.12”)
Label sizes
- Height from 10 mm to 60 mm (from 0.39” to 2.36”)
- Length from 13 mm to 100 mm (from 0.51” to 3.94”)
Reel diameter
- Max. 400 mm (15.75”)
Reel core diameter
- 45 or 75 mm (1.77” or 2.95”)
Technical documentation
- Standard Instructions Manual and CE Certificate are supplied with the machine.
